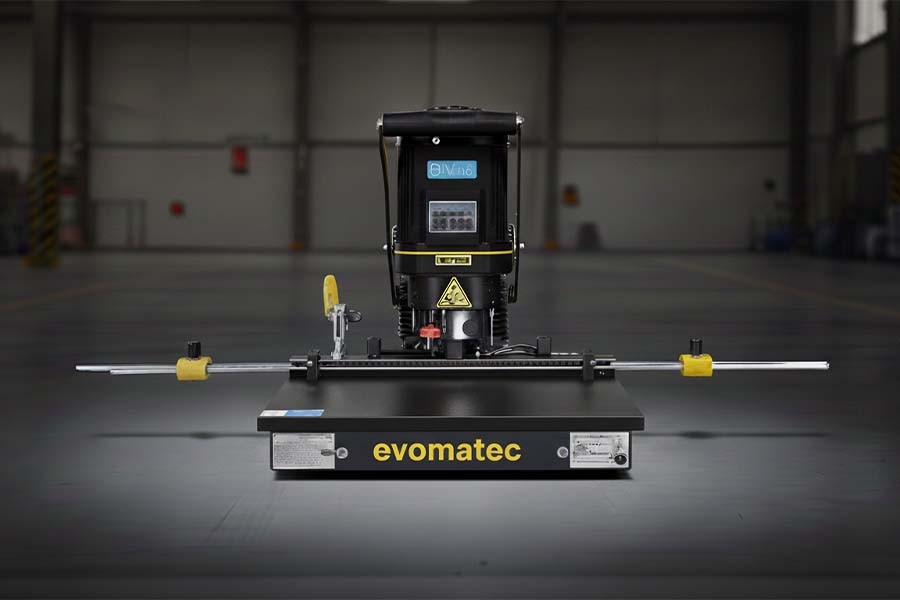

Hinge Slot Milling Machine for Wood – EVO SLOT

Precision and efficiency in milling hinges, locks, and handle openings for wooden doors and windows

The EVO SLOT hinge slot milling machine for wood is designed specifically for the precise milling and drilling of hinge slots, lock holes, and handle recesses. With its robust construction, ergonomic handling, and accurate depth control, it is the ideal solution for professional wood door and window manufacturing. Whether in a workshop or an industrial production line, this machine guarantees maximum accuracy and repeatability in every operation.

---

Precise Slot Milling for Fittings

The EVO SLOT hinge milling machine for wood enables fast and clean milling of recesses for hinges and fittings. The strong spring system ensures consistent milling depth, while the user-friendly measurement ruler allows for precise repeat cuts. The ergonomic design ensures comfortable operation even during long working hours.

This hinge slot milling machine for wood combines precision, safety, and durability, making it an essential tool for carpenters, joiners, and professional woodworkers.

---

Technical Specifications

• Motor power: 1 HP / 0.75 kW

• Speed: 3000 rpm

• Power supply: 230 V, 50/60 Hz, 4.8 A

• Drilling diameter: Ø 35 mm main bit, Ø 2 mm auxiliary bits

• Milling depth: 45 mm

• Machine dimensions: 445 × 450 × 420 mm

• Weight: 20 kg

The EVO SLOT stands out for its solid construction and high precision, making it ideal for accurate slot milling for fittings, hinge recesses, and lock openings in wooden materials.

---

Advantages of the EVO SLOT Hinge Milling Machine

• High precision: Consistent depth and clean cutting edges

• Robust design: Low vibration, durable, and low maintenance

• Ergonomic operation: Comfortable handling for professional use

• Energy efficient and CE certified

• Versatile: Suitable for doors, window frames, furniture, and wooden components

---

Standard Equipment

• Punching blade

• Two 2 mm drill bits

• Two profile gauges

---

Optional Equipment

• Second clamp

• Stable machine stand

---

Applications

The EVO SLOT hinge milling machine for wood is ideal for precise work in wooden door and window production as well as furniture manufacturing. It allows accurate slot milling for fittings, hinges, locks, and handle openings, significantly improving productivity and finish quality.

---

Conclusion

The EVO SLOT hinge slot milling machine for wood combines precision, strength, and ease of use in a compact system. It is the perfect choice for professionals who demand reliable quality and maximum efficiency when milling hinge and lock recesses in wood.
