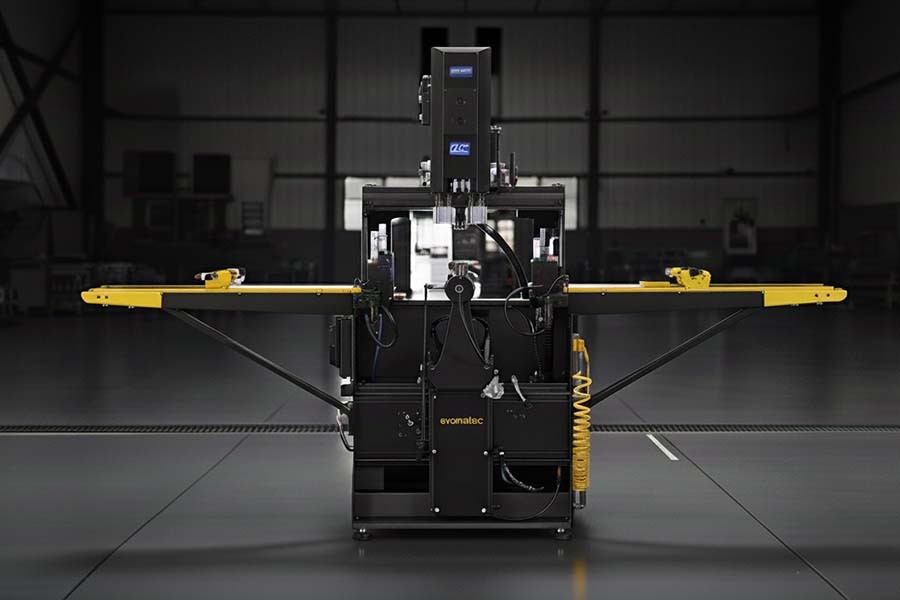

PVC Profile Copy Router Machine with 3 Motors EVOG IV – High-Precision Multi-Surface Milling for Plastic and PVC Profiles

The EVOG IV Copy Router Machine with 3 Motors by Evomatec represents a new generation of high-performance PVC and plastic profile milling technology.
Designed for simultaneous machining on three surfaces of a profile, this advanced industrial machine sets new standards in speed, precision, and productivity.

With three independent high-speed motors, the EVOG IV can mill lock slots, handle holes, hinge grooves, and multi-surface contours in a single operation.
It’s the perfect solution for manufacturers seeking maximum accuracy, repeatability, and reliability in PVC and plastic profile fabrication.

---

Advanced Three-Motor Copy Routing Technology

The EVOG IV PVC Profile Copy Router is engineered to perform simultaneous routing operations on three faces of a plastic or PVC profile.
By combining three synchronized spindles, it dramatically reduces cycle times, boosts output efficiency, and ensures consistent, burr-free results.

Whether you’re processing handle slots, lock recesses, or hinge grooves, this machine guarantees dimensional precision and smooth surface finishes.
Its vibration-free guide system and integrated cooling unit ensure optimal tool temperature and extend tool life — even in continuous operation.

---

Innovative Triple-Motor System with Intelligent Control

Each of the three high-performance motors operates independently, allowing individual depth adjustments on every surface of the profile.
The integrated pneumatic clamping system secures workpieces firmly in place, ensuring steady and accurate routing even on delicate PVC frames.

System Highlights:

• Three synchronized high-speed motors for simultaneous milling on front, top, and rear faces

• Integrated cooling system for thermal stability and extended tool lifespan

• Adjustable cutting depth for each motor individually

• Precision linear guides for smooth, vibration-free operation

• CE-certified safety system with automatic protection sensors

The EVOG IV achieves higher production rates and consistent quality — a major advantage for industrial workshops and mass production.

---

Technical Specifications

• Motor Power: 3 × 1.1 kW (1.5 HP)

• Speed: 12,000 rpm per motor

• Voltage: 230 V / 50–60 Hz

• Cutter Diameter: 8 mm (standard), optional 5–10 mm

• Travel Ranges:

  • Motor 1: X1 460 mm | Y1 210 mm | Z1 210 mm

  • Motor 2: X2 430 mm | Y2 240 mm | Z2 145 mm

• Air Pressure: 6–8 bar

• Air Consumption: 9 L/min

• Dimensions: 2815 × 1430 × 1835 mm

• Weight: 293 kg

• Cooling System: Integrated

• Clamping System: Pneumatic, standard

---

Key Benefits of the EVOG IV PVC Copy Router Machine

Multi-Surface Routing in One Cycle

The EVOG IV can mill three sides of a profile simultaneously, ideal for lock slots, hinge grooves, and handle openings.
This reduces machining time by up to 60% and increases production throughput.

High Dimensional Accuracy

The rigid frame construction and precision-guided axes deliver consistent, repeatable results across all profiles and material types.

Flexible and Fast Setup

Quickly adaptable through adjustable copying templates and variable routing depths, the machine suits diverse PVC, plastic, and composite profiles.

Clean, Safe, and Efficient Operation

Pneumatic clamping, synchronized spindle control, and active cooling guarantee smooth cutting performance, long tool life, and operator safety.

Energy-Efficient and Maintenance-Free

Built for long-term industrial use, the EVOG IV operates quietly, efficiently, and with minimal maintenance requirements, complying with CE industrial safety standards.

---

Application Areas

The Evomatec EVOG IV Copy Router Machine is the perfect choice for manufacturers handling PVC, UPVC, and plastic profiles requiring high precision and productivity.

Typical Use Cases:

• Window and Door Manufacturing: handle holes, lock slots, hinge grooves, and drainage openings

• Facade and Curtain Wall Systems: connecting slots and installation recesses

• Industrial Plastic Fabrication: multi-surface machining of PVC and composite profiles

• Custom Production: configurable templates for special or non-standard profile geometries

---

Industrial Efficiency and Ergonomic Design

The EVOG IV combines high-speed machining performance with user-friendly operation.
Its ergonomic control panel, pneumatic quick clamping, and intelligent feed control make it ideal for high-volume production environments.

Every component — from the motor drives to the linear guides — is optimized for precision, stability, and long service life, ensuring a reliable investment for any industrial PVC or plastic profile workshop.

---

Conclusion – EVOG IV: The Premium 3-Motor Copy Router for PVC and Plastic Profiles

The EVOG IV Copy Router with 3 Motors is Evomatec’s premium solution for high-precision PVC and plastic profile machining.
With three independently controlled motors, adjustable routing depths, and pneumatic clamping, it enables simultaneous multi-surface operations with exceptional accuracy and speed.

This makes the EVOG IV a top choice for window, door, and facade manufacturers seeking maximum efficiency, clean cutting performance, and long-term reliability.

Contact our sales team for technical support, pricing, or custom configurations: info@evomatec.de

---
