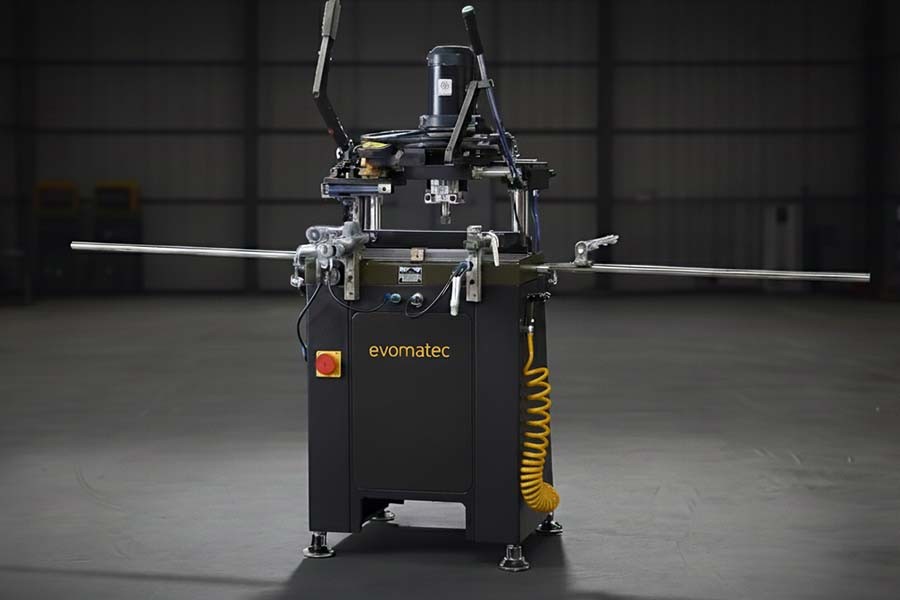

Copy Router for PVC and Plastic Profiles EVOCOPY GI – Precision, Versatility, and Industrial Efficiency

The EVOCOPY GI Copy Router for PVC and Plastic Profiles by Evomatec is a high-precision milling machine designed for drilling, slotting, and routing operations on PVC and plastic profiles.
Built with robust industrial construction, pneumatic clamping systems, and an accurate guiding mechanism, it ensures clean, repeatable, and burr-free results — ideal for window, door, and façade manufacturers who demand reliability and precision in profile processing.

This advanced manual copy milling machine for PVC profiles combines ease of operation, fast processing speed, and high versatility.
Engineered for professional workshops and production facilities, the EVOCOPY GI guarantees consistent performance, long service life, and precise milling accuracy for every application.

---

High-Precision Milling for PVC and Plastic Profiles

The EVOCOPY GI is purpose-built for milling handle, lock, and hinge openings, as well as slots, channels, and drainage holes in PVC and plastic window and door profiles.
With a milling area of 250 × 110 × 115 mm (X/Y/Z) and a spindle speed range of 11,500 – 14,000 rpm, it delivers clean surface finishes and high material accuracy, even on complex shapes or curved geometries.

The high-speed spindle motor combined with optimized cutting tools ensures fast and controlled milling without melting or deforming plastic materials.

---

Template Copying Function for Repetitive Accuracy

The template-guided copying system allows precise and repeatable routing according to custom templates — perfect for standardized machining of profile series such as locks, hinges, and drainage slots.
The pneumatic clamping unit securely holds the profile in position during machining, eliminating vibration and movement.

An integrated cooling system prevents material overheating, keeping the cutting area clean and the surface finish burr-free.
This makes the EVOCOPY GI ideal for long-term use in PVC profile production and finishing lines.

---

Superior Surface Quality and Smooth Operation

Equipped with precision linear guides and vibration-free structure, the copy router for PVC profiles provides exceptional cutting accuracy and repeatability.
The standard 5 mm milling cutter (optional 8 mm) allows flexibility for various profile types and applications.

The ergonomic machine layout ensures easy access, safe operation, and smooth manual control, making it suitable for daily industrial use in both single operations and serial production.

---

Technical Specifications

• Motor Power: 1.5 HP (1.1 kW)

• Spindle Speed: 11,500 – 14,000 rpm

• Cutter Diameter: 5 mm (standard), 8 mm (optional)

• Milling Stroke (X/Y/Z): 250 / 110 / 115 mm

• Air Pressure: 6 – 8 bar

• Air Consumption: 5 L/min

• Clamping System: Pneumatic, vertical and horizontal

• Cooling System: Integrated for temperature control and clean cutting

• Machine Dimensions: 2540 × 730 × 1450 mm

• Machine Weight: 103 kg

---

Advantages of the EVOCOPY GI Copy Router for PVC and Plastic Profiles

High Precision and Stability

Advanced guiding systems ensure accurate, repeatable cuts and perfect symmetry across all profile types.

Versatile Application Range

Ideal for drilling, slotting, lock openings, hinge recesses, and drainage channels on PVC and plastic profiles.

Robust Construction and Low Vibration

The solid industrial frame minimizes vibration, ensuring smooth surface finishes and long tool life.

Energy-Efficient and Low Maintenance

The automatic lubrication system and low air consumption make the EVOCOPY GI cost-effective and durable for daily industrial operation.

CE-Certified Safety

Manufactured according to European CE safety standards, ensuring operator protection and long-term reliability.

---

Typical Applications

• Window manufacturing: milling lock, handle, and hinge openings in PVC frames

• Door production: precise drilling and slotting for fittings and reinforcements

• Façade systems: routing mounting or drainage slots in plastic profiles

• Custom plastic profile fabrication: tailored milling for technical components

---

Precision and User-Friendly Design for Industrial Use

The EVOCOPY GI combines industrial precision and ergonomic control in a compact, powerful design.
Operators can easily adjust settings for different profiles, while the robust construction ensures consistent results, minimal maintenance, and high production efficiency.

Its compact footprint, energy efficiency, and high-speed milling capability make it the perfect solution for companies working with PVC, composite, and plastic profiles who require accuracy, reliability, and productivity.

---

Conclusion – EVOCOPY GI Copy Router for PVC and Plastic Profiles

The EVOCOPY GI stands for precision, durability, and ease of use in the machining of PVC and plastic profiles.
With its pneumatic clamping system, template-guided copying unit, and industrial-grade spindle system, it delivers consistent, burr-free, and high-quality results in every operation.

Whether used in window, door, or façade production, this professional copy router ensures maximum cutting accuracy and production efficiency with minimal setup time.

Contact our sales team for quotes, technical information, or custom solutions: info@evomatec.de

---
